M00新型电装传动装置

M00 new electric worm-gear device

产品简介

本产品是为配电动装置而设计的,可以使电动头规格减小。采用蜗轮蜗杆传动副,结构合理、组装方便,具有可靠的自锁性。适用于90°回转的蝶阀、球阀、旋塞阀等阀门用电动控制时选用。


主要件明细表


技术参数

型号 Model额定扭矩Torque    Nm速比Ratio输入扭矩Input Torque    Nm最大内孔Hole max允许法兰  Moting Flange建议电装扭矩    Electical device      Torque  Nm可选速比    Optional ratio可选速比    Optional ratio可选速比    Optional ratio
速比Ratio输入扭矩  Input Nm速比Ratio输入扭矩  Input Nm速比Ratio输入扭矩  Input Nm
M36S-Z158000232:1150110F16、F25150150:1225304:1110

M50S-Z2016000277:1240110F25、F30200178:1370363:1285

M60S-Z3024000325:1300160F30、F35300210:1470427:1230

M65S-Z3035000399:1360160F30、F35300257:1560523:1270

M70S-Z6050000338:1620160F30、F35、F40600209:11000261:1800506:1420
M75S-Z6070000389:1750180F35、F40600241:11250301:1970583:1500
M80S-Z90100000389:11070185F35、F40、F48900237:11760291:11430558:1750
M90S-Z120160000399:11650240F48、F601200243:12740298:12240572:11150

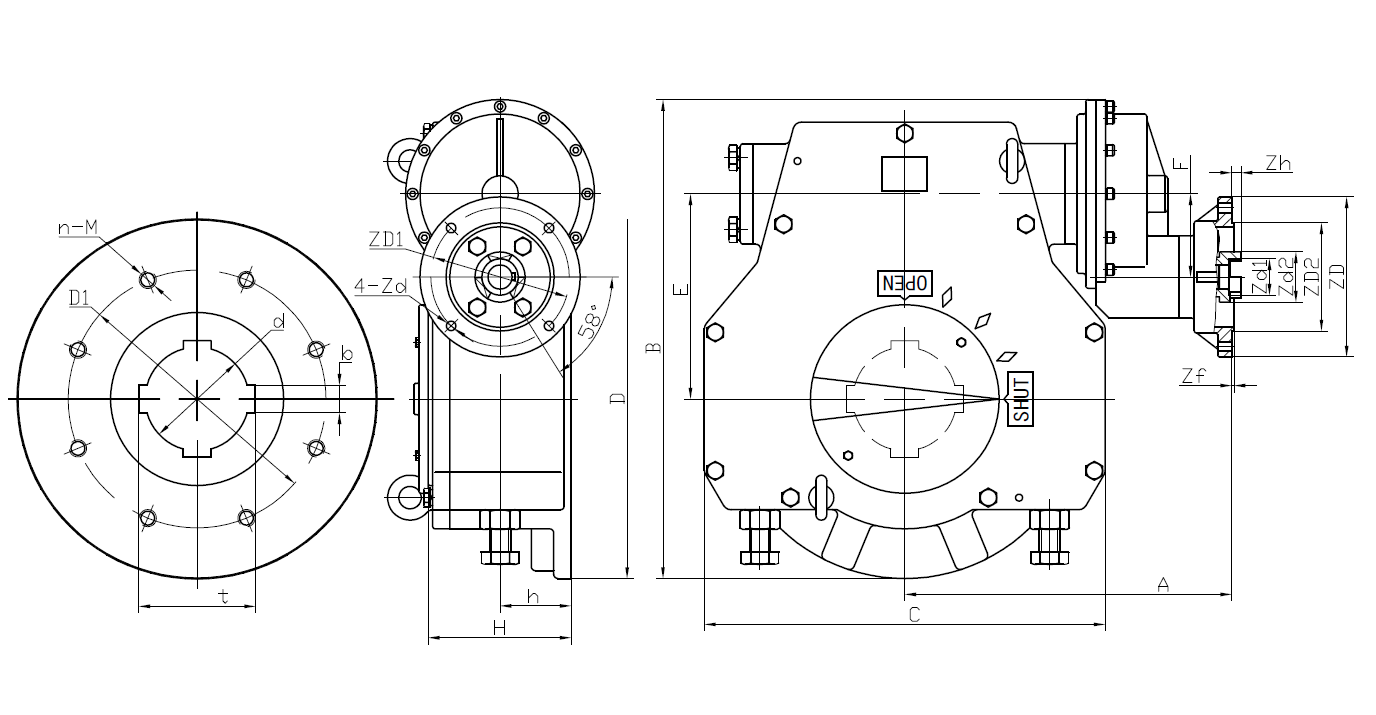

外形尺寸表

型号ModeldbtD1n-MABCDEFHhZDZD1ZD2ZfZhZd1Zd24-Zd
M36S-Z15651673.62548-M163064112863101389613073145120903930454-φ11
M50S-Z20852295.82548-M16345468355355181961608018516012531142584-φ13
M60S-Z3012032134.82988-M20378554463415237961658218516012531142584-φ13
M65S-Z3012032134.83568-M30410599558415282961728418516012531142584-φ13
M70S-Z6012032134.83568-M3051872561047530915822510722519515031350724-φ18
M75S-Z6015036166.84068-M3653876569247534915823111022519515031350724-φ18
M80S-Z9015036166.84068-M3662795876056039121527013027523518031550824-φ22
M90S-Z12018045200.848312-M36692107396868649121530013827523518031550824-φ22


连接尺寸表
